Model

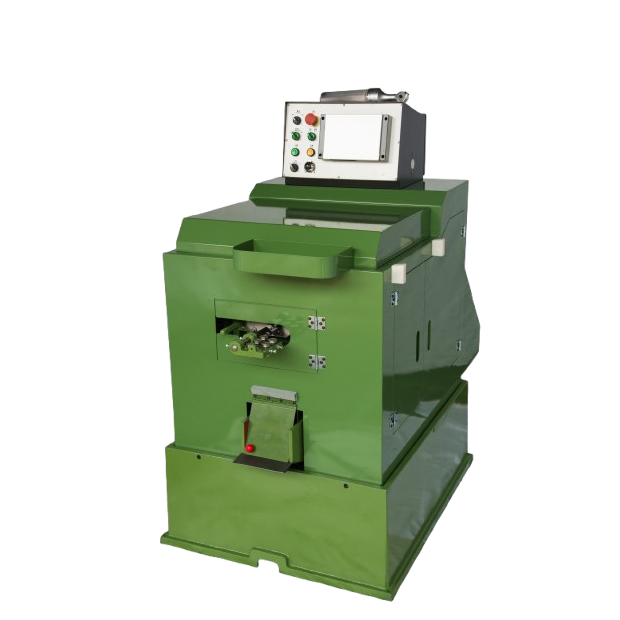

HM-0525A High speed heading machine
Max Speed
260 / min
Product Features
※The 0525 type has a faster speed.
In addition to the advantages of the 0525H, this model features a fully enclosed enclosure and a rear exhaust pipe, effectively reducing air pollution in the factory and lowering noise by 15%.
In addition to the advantages of the 0525H, this model features a fully enclosed enclosure and a rear exhaust pipe, effectively reducing air pollution in the factory and lowering noise by 15%.
Applicable screw types
◆Woodworking and plastic products, high-volume low-priced screws.
◆Pants button head.
◆Production continues 24 hours a day.
◆Pants button head.
◆Production continues 24 hours a day.
Technical Specifications
Dimensions L×W×H (cm)
165 × 85 × 150
Net Weight (kg)
720
Production Range (mm)
Ø0.6 ~ 3.0
Main Die (mm)
20 × 38
Cut-off Die (mm)
13.5 × 25
Cutter L×W×H (mm)
45 × 25 × 6
Punch Die (mm)
18 × 52
Machine Stroke (mm)
40
Power (hp)
1
