Model

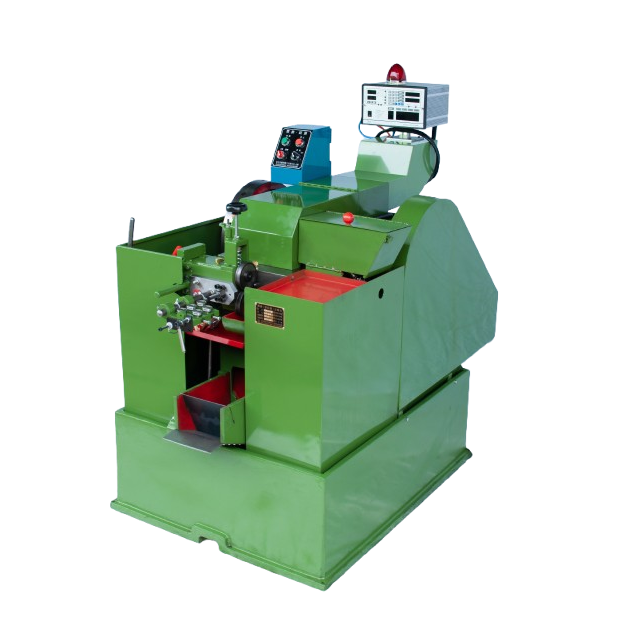

HM-0525H High speed heading machine
Max Speed
260 / min
Product Features
※The 0525 type has a faster speed.
This model features a larger oil tank to reduce oil temperature and increase machine stability. A higher operating height improves comfort during calibration.
This model features a larger oil tank to reduce oil temperature and increase machine stability. A higher operating height improves comfort during calibration.
Applicable screw types
◆Woodworking and plastic products, high-volume low-priced screws.
◆Pants button head.
◆Production continues 24 hours a day.
◆Pants button head.
◆Production continues 24 hours a day.
Technical Specifications
Dimensions L×W×H (cm)
150 × 85 × 120
Net Weight (kg)
650
Production Range (mm)
Ø0.6 ~ 3.0
Main Die (mm)
20 × 38
Cut-off Die (mm)
13.5 × 25
Cutter L×W×H (mm)
45 × 25 × 6
Punch Die (mm)
18 × 52
Machine Stroke (mm)
40
Power (hp)
1
