Model

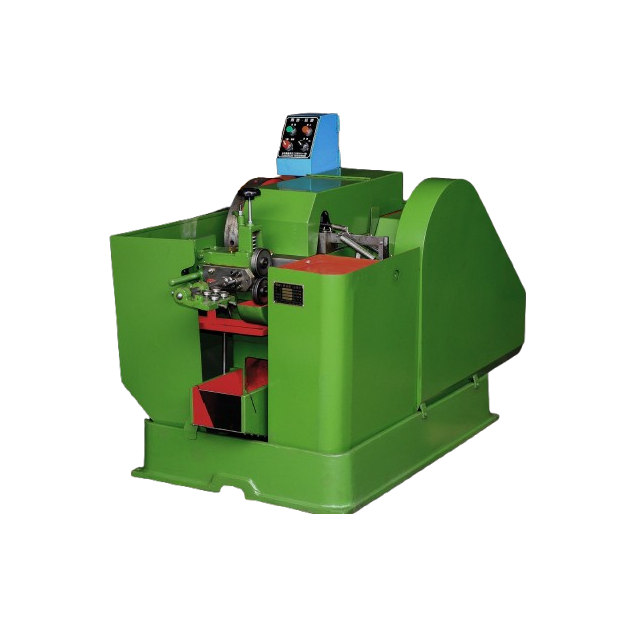

HM-0525 High speed heading machine
Max Speed
260 / min
Product Features
※The 0525 type has a faster speed.
This model is slightly smaller, allowing more units to be placed in a limited space, and it is also more price-competitive.
This model is slightly smaller, allowing more units to be placed in a limited space, and it is also more price-competitive.
Applicable screw types
◆Woodworking and plastic products, high-volume low-priced screws.
◆Pants button head.
◆Production continues 24 hours a day.
◆Pants button head.
◆Production continues 24 hours a day.
Technical Specifications
Dimensions L×W×H (cm)
140 × 75 × 100
Net Weight (kg)
560
Production Range (mm)
Ø0.6 ~ 3.0
Main Die (mm)
20 × 38
Cut-off Die (mm)
13.5 × 25
Cutter L×W×H (mm)
45 × 25 × 6
Punch Die (mm)
18 × 52
Machine Stroke (mm)
40
Power (hp)
1
