Model

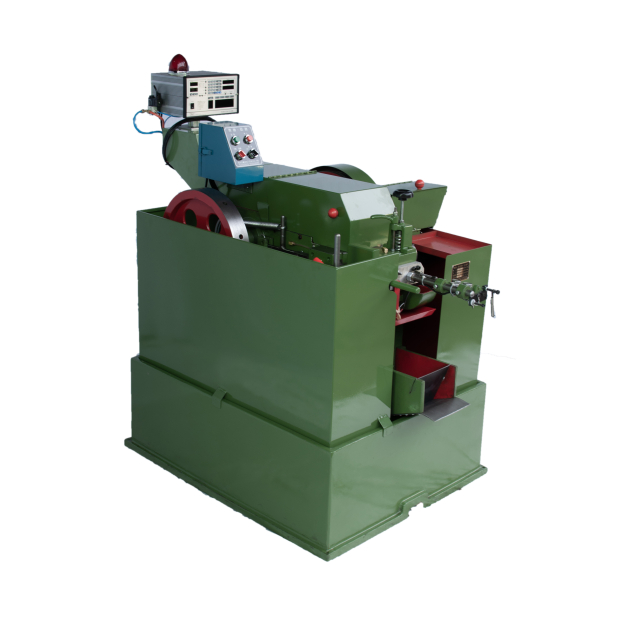

HM-0528H Screw heading machine
Max Speed
180 / min
Product Features
※The 0528 type has a longer travel distance.
This model features a larger oil tank to reduce oil temperature and increase machine stability. A higher operating height improves comfort during calibration.
This model features a larger oil tank to reduce oil temperature and increase machine stability. A higher operating height improves comfort during calibration.
Applicable screw types
◆Tiny electronic screws such as those used in mobile phones and laptops.
◆Stainless steel screws.
◆ Hex Socket Head Cap Screws.
◆Alien, special shapes.
◆Stainless steel screws.
◆ Hex Socket Head Cap Screws.
◆Alien, special shapes.
Technical Specifications
Dimensions L×W×H (cm)
150 × 85 × 120
Net Weight (kg)
650
Production Range (mm)
Ø0.6 ~ 3.0
Main Die (mm)
20 × 50
Cut-off Die (mm)
13.5 × 25
Cutter L×W×H (mm)
45 × 25 × 6
Punch Die (mm)
18 × 52
Machine Stroke (mm)
50
Power (hp)
1
