Model

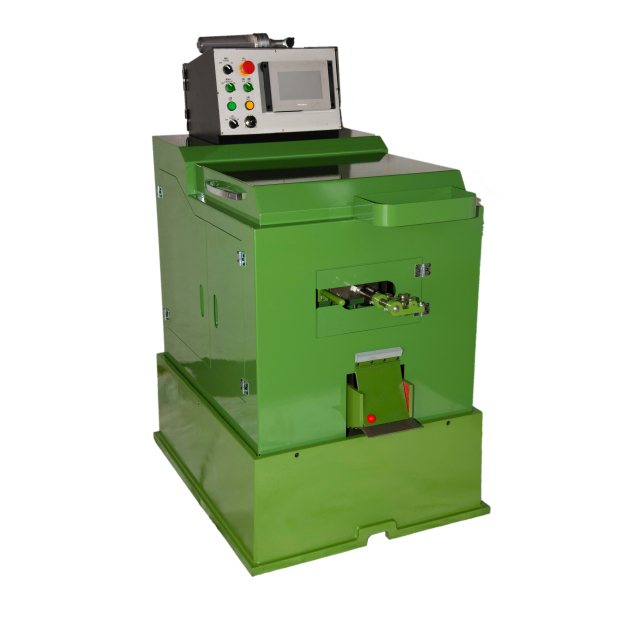

HM-0532A Semi rivet heading machine .
Max Speed
140 / min
Product Features
※The 0532 type is mainly a machine for producing rivets.
In addition to the advantages of the 0525H, this model features a fully enclosed enclosure and a rear exhaust pipe, effectively reducing air pollution in the factory and lowering noise by 15%.
In addition to the advantages of the 0525H, this model features a fully enclosed enclosure and a rear exhaust pipe, effectively reducing air pollution in the factory and lowering noise by 15%.
Applicable screw types
◆Aluminum rivets.
◆Stainless steel rivets.
◆Copper rivets.
◆Stainless steel rivets.
◆Copper rivets.
Technical Specifications
Dimensions L×W×H (cm)
175 × 85 × 150
Net Weight (kg)
750
Production Range (mm)
Ø0.6 ~ 3.0
Main Die (mm)
20 × 50
Cut-off Die (mm)
13.5 × 25
Cutter L×W×H (mm)
45 × 25 × 6
Punch Die (mm)
18 × 52
Machine Stroke (mm)
50
Power (hp)
1/2
